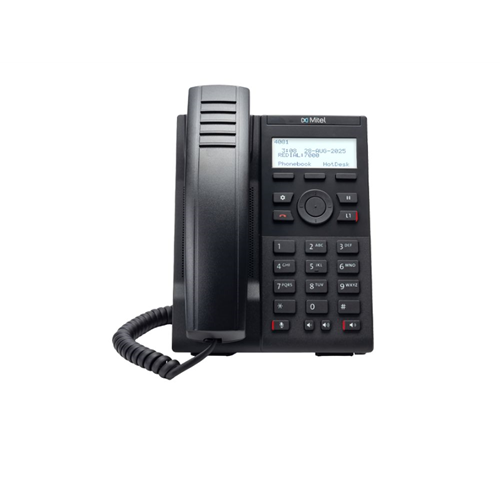

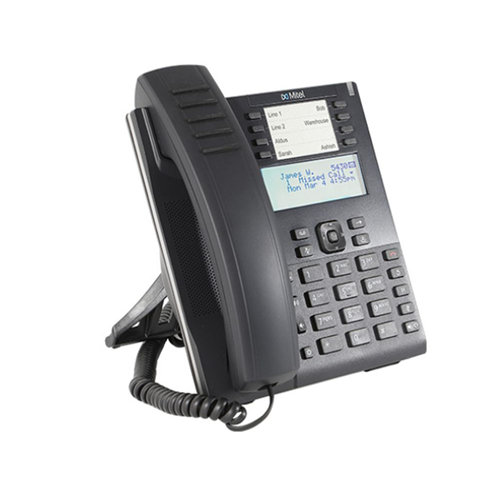

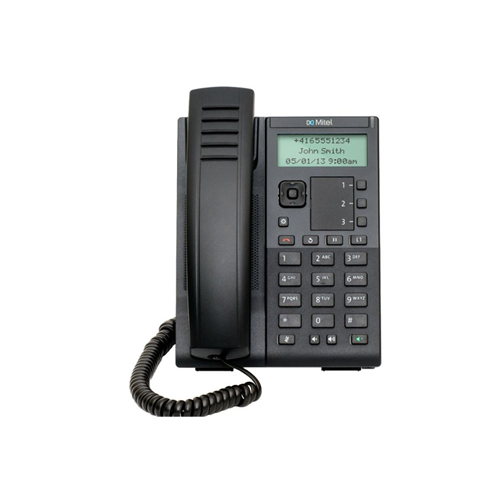

These entry level phones feature dual Ethernet ports, large monochrome displays, programmable Personal Keys and high definition audio quality. These phones offer exceptional value with support for the same MiVoice Business features as the rest of the 6900 Series IP Phones, including Hot Desking, Personal Ring Group, Teleworker support and full resiliency.

Specifications:

• 2.75” LCD display
• 3 programmable Personal Keys
• 3 context-sensitive soft keys
• Navigation cluster
• 12 fixed feature keys
• Incoming call / message waiting indicator
• Dual 10/100 Ethernet Ports
• PoE power (802.3af)
• Mitel Hi-Q Audio Technology
• Full duplex wideband handset and speakerphone

IP Toestellen

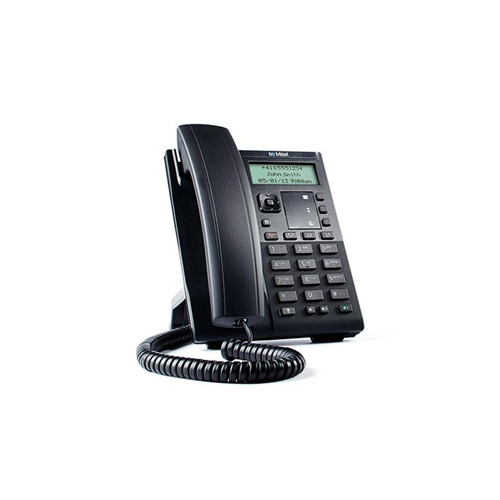

De 6863i:
*Compacte enterprise grade telefoon
*Wideband HD audio speaker en headset
*2 lijnen met LED aanduiding
*4 lijnen grafisch LCD display
*3 programmeerbare toetsen, bellijst, terugbellen en doorverbinden
*Dual 100 BaseT Ethernet poorten met hardware switch
*Geschikt voor PoE en AC adapter
*PoE Class 1, miliue vriendelijk toestel
*30graden low profile en 60 graden high profile standaard

Het toestel ondersteund geen EHS of DHSG.
Exclusief adapter

IP Toestellen

IP Toestellen

The 6930t IP Phone is made from plastics that are protected with a silver-based treatment from BioCote Limited that inhibits the growth of certain viruses and bacteria on phone surfaces by up to 99.9%*. Ideal for power users in shared workspaces who need a phone that can be tailored to their specific communication needs. MobileLink enables the user’s mobile phone to pair directly with the 6930t using the embedded Bluetooth 4.1 interface to deliver access to many of the features of the mobile phone on the desk phone. The 6930t affords users the flexibility to tailor the phone for specific needs through a broad array of end user installable add-on accessories including a unique Bluetooth cordless handset option.

Key Features

• Built using plastics protected with an antimicrobial treatment shown to inhibit certain virus & bacteria growth on the phone’s surfaces by up to 99.9%*
• 4.3 (480×272 pixel) color display
• Bluetooth 4.1
• MobileLink mobile device integration
• Support for optional Cordless handset
• Enhanced full-duplex speakerphone
• Programmable & Context Sensitive keys
• Highly customizable via broad array of optional add-on accessories

Feature Keys

• Personal programmable keys for access to Lines, Speed Dials and Telephony functions
• Context sensitive soft keys
• 4-way navigation key

Minimum System Software

• MiVoice Business, Release 8.0
• MiVoice Office 400, Release 5.0
• MiVoice 5000, Release 6.4
• MiVoice MX-One, Release 6.3
• MiVoice Connect, Release
• MiVoice Office 250, Release
• MiVoice Border Gateway (Teleworker) Release 9.4
• MiCollab Client, Release 7.2.2

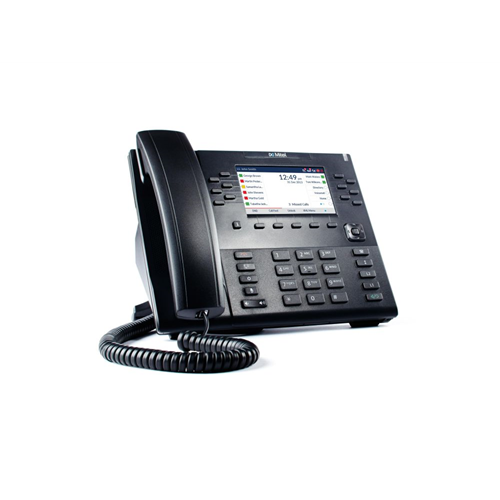

IP Toestellen De Aastra 6869i

• Enterprise grade telefoon voor power users
• Wideband HD audio speaker en headset
• Dubbele microfoon voor hoge voice kwaliteit
• Tot maximaal 12 lijnen
• 2 lijnen met LED aanduiding
• Groot 4,3” inch QVGA kleuren display
• 12 programmeerbare Software toetsen
• 5 Programmeerbare systeem toetsen
• Dual 1000 Gigabit Ethernet poorten met hardware switch
• Geschikt voor PoE en AC adapter
• PoE Class 2, miliue vriendelijk toestel
• 30graden low profile en 60 graden high profile standaard
• EHS en 4-pin headset aansluitingen
• Geschikt voor 3 toets uitbreiding panelen
• Geschikt voor magnetisch QWERTY toetsenbord

Exclusief adapter

IP Toestellen

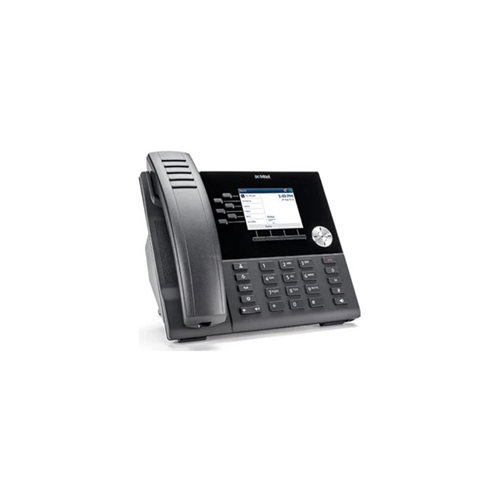

The 6920t IP Phone is made from plastics that are protected with a silver-based treatment from BioCote Limited that inhibits the growth of certain viruses and bacteria on phone surfaces by up to 99.9%*. Ideal for shared workspace users who demand not only a modern design but also a phone that is flexible and delivers a high-quality communications experience. The 6920t is designed from the ground up to provide an exceptional HD audio experience with a high quality full-duplex speakerphone and support for both USB & Analog headsets. The 6920t offers an intuitive user experience via its crisp high resolution 3.5” color LCD display and programmable and context-sensitive keys.

Key features

• Built using plastics protected with an antimicrobial treatment shown to inhibit certain virus & bacteria growth on the phone’s surfaces by up to 99.9%*
• Support for up to 18 lines
• 3.5” QVGA (320×240 pixel) color display
• High quality full-duplex speakerphone
• Programmable personal keys and Context sensitive soft keys
• Native EHS/DHSG analog headset support

Feature Keys

• Programmable keys for access to Lines, Speed Dials and Telephony functions
• Context sensitive soft keys
• 4-way navigation key

Minimum System Software

• MiVoice Business, Release 8.0
• MiVoice Office 400, Release 5.0
• MiVoice 5000, Release 6.4
• MiVoice MX-One, Release 6.3
• MiVoice Connect, Release 19.1
• MiVoice Office 250, Release 6.3
• MiVoice Border Gateway (Teleworker) Release 9.4
• MiCollab Client, Release 7.2.2

IP Toestellen

IP Toestellen

De Mitel 5304 is een kostenefficiënt toestel met display, dat toegang geeft tot de applicaties en functionaliteiten van de Mitel IP communicatie platformen.
Het 2 lijns toestel beschikt over een interne switch die het mogelijk maakt het toestel door te lussen met de PC desktop.
Verder biedt het de mogelijkheid om zowel middels het Mitel IP protocol (MiNet) communiceren alswel middels het SIP protocol.

Eigenschappen:

• Display met 20 karakters incl. automatische achtergrond dimming
• 2 lijnen, zichtbaar middels LED verlichting
• 7 programmerbare toetsen
• Inkomend gesprek visueel zichtbaar middels indicatie lampje
• Berichtgeving mogelijkheden
• Speaker functie
• Aanpasbaar volume
• Wandmontage mogelijkheid
• Energie besparingsstand

Support for both MiNET IP and SIP Protocols.Recommended Minimum System Software:

• 3300 ICP: Release 9.0 UR1
• 5000 CP: Release 3.2
• SX-200 ICP: Release 4.0 UR5
• SIP Phone Release 7.2

Supports 802.3af PoE.If local Power is required, Ethernet / AC Power Adapter and one of the Power Cords must be purchased separately:

• 51015131 48VDC Ethernet P/S Universal, 100-240V 50-60 Hz
• 51004990 C7 Power Cord with Euro Plug Type

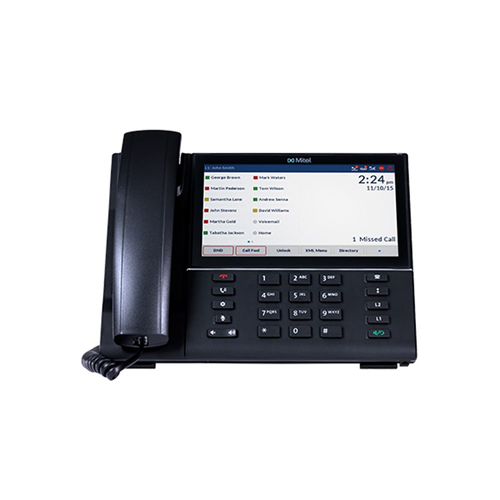

IP Toestellen De 6873i:

• Enterprise grade telefoon
• Wideband HD audio speaker en headset
• 2 lijnen met LED tot maximaal 24 sip accounts
• 7” touch screen kleuren display
• 8 programmeerbare toetsen
• 48 softkeys over 6 pagina’s
• 30 context-sensitive softkeys, 6 pagina’s
• Dual 1000 Gigabit Ethernet poorten met hardware switch
• Geschikt voor PoE en AC adapter
• PoE Class 3, miliue vriendelijk toestel
• 35 graden low profile en 60 graden high profile standaard
• Extension Module Support
• 1 x USB 2.0 powered Type-A jack
• Headset Support ( USB en Bluetooth)

IP Toestellen

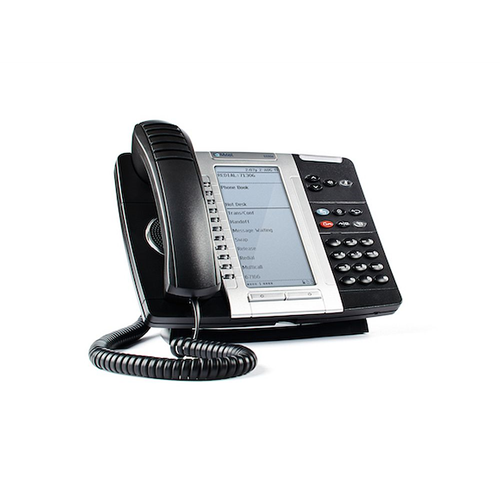

IP Toestellen Mitel 5330e IP Phone

• The Mitel 5330e Gigabit IP Phone is a full-feature enterprise class telephone that provides users with real-time access to applications and services such as web browsing, contact lists, call history logs and many customizable user settings.

Mitel 5330e Backlit Features:

• Large backlit graphics display (160 × 320) with auto dimming * 24 Programmable, multi-function, self-labeling keys, provided in 3 pages of 8 keys each * Wideband Audio Support – ships with a wideband handset (7kz) standard * Peripherals and modules support: Line Interface Module, IP Conference Unit, Cordless (DECT) Accessories, Wireless LAN Stand, Gigabit Ethernet Stand * 12 fixed function keys: Hold, Settings, Message, Speaker, Mute, Transfer / Conference, Redial, Cancel, Volume/Ringing/Contrast Up & Down, Previous Page, Next Page * 3 context-sensitive softkeys for intuitive feature access * Browser-based Desktop Tool for easy user programming and key labeling * Supports Mitel Unified Communicator® (UC) Express and 5300 Intelligent Directory Applications
• Dual mode phone: support for SIP and MiNET protocols
• Handsfree speakerphone operation (full duplex)
• Dual embedded Gigabit Ethernet ports (LAN and PC)

Mitel 5330e Compatibility:

• Mitel Communications Director (MCD) Release 5.0 SP2 or later
• Mitel 5000 Communications Platform (CP) Release 5.1 or later
• Mitel SX-200 IP Communications Platform (ICP) Release 5.0 or later
• Mitel Border Gateway (Teleworker Solution) Release 7.1 or later
• Mitel SIP Software Release 8.0 or later
• Mitel HTML Toolkit Release 2.1 or later

Supports 802.3af PoE.If local Power is required, Ethernet/AC Power Adapter and one of the Power Cords mustbe purchased separately:

• 51015131 48VDC Ethernet P/S Universal, 100-240V 50-60 Hz
• 51004990 C7 Power Cord with Euro Plug Type

IP Toestellen Mitel 5340e IP Phone

• The Mitel 5340e Gigabit IP Phone delivers easy- to-use, one-touch access to many phone features and applications in an exciting next generation desktop device.

Mitel 5340e Features:

• Large backlit graphics display (160 × 320) with auto dimming
• 48 Programmable, multi-function, self-labeling keys, provided in three pages of 16 keys each
• Wideband Audio Support – ships with a wideband handset (7kz) standard
• Peripherals and modules support: Line Interface Module, IP Conference Unit, Cordless (DECT) Accessories, Wireless LAN Stand, Gigabit Ethernet Stand
• 13 fixed function keys: Hold, Settings, Message, Speaker, Mute, Transfer / Conference, Redial, Cancel, Volume/Ringing/Contrast Up & Down, Home Page, Previous Page, Next Page
• Six context-sensitive softkeys for intuitive feature access
• Browser-based Desktop Tool for easy user programming and key labeling
• Dual mode phone: support for SIP and MiNET protocols
• Handsfree speakerphone operation (full duplex)
• Dual embedded Gigabit Ethernet ports (LAN and PC)

Supports 802.3af PoE. If local Power is required, Ethernet/AC Power Adapter and one of the Power Cords must be purchased separately:

• 51015131 48VDC Ethernet P/S Universal, 100-240V 50-60 Hz
• 51004990 C7 Power Cord with Euro Plug Type

Compatibility:

• Mitel Communications Director (MCD) Release 5.0 SP2 or later
• Mitel 5000 Communications Platform (CP) Release 5.1 or later
• Mitel SX-200 IP Communications Platform (ICP) Release 5.0 or later
• Mitel Border Gateway (Teleworker Solution) Release 7.1 or later
• Mitel SIP Software Release 8.0 or later
• Mitel HTML Toolkit Release 2.1 or later
