Helios/2N
Helios/2N 2N Opbouw installatie afdekframe voor 2 modules installation frame for 2 modules
FRAME FOR INSTALLATION ON THE SURFACE – 2 MODULES
Frame for installation on the surface, 2 modules. No other accessories are needed for surface installation of the intercom. When installing on a glass or uneven surface, we recommend you use a backplate.
*Suitable for These Products: 2N® IP VERSO and 2N® LTE VERSO
*107 (W) x 234 (H) x 28 (D) mm
Helios/2N 2N IP Uni intercom met 1 button
2N® IP UNI
The 2N® IP Uni intercom is the ideal solution for communication, in general purpose outdoor and indoor environments. Its easy operation and interface with the IP world will ensure nobody ever gets lost on the premises. In an instant it connects you with, for example, reception or security and provides you with professional assistance.
*Easy installation
*Visual status signalling
*Replace your analogue intercom
Helios/2N 2N IP Verso intercom met camera (zilver) Silver
2N® IP VERSO
The 2N® IP Verso security intercom is configurable to your needs thanks to its modularity. It provides reliable access control and allows you to easily interface with other systems, achieving even higher site security. Available also in black, with a fingerprint reader, Bluetooth module, or touch display.
*Progressive mobile access
*Touchscreen
*Camera with night vision

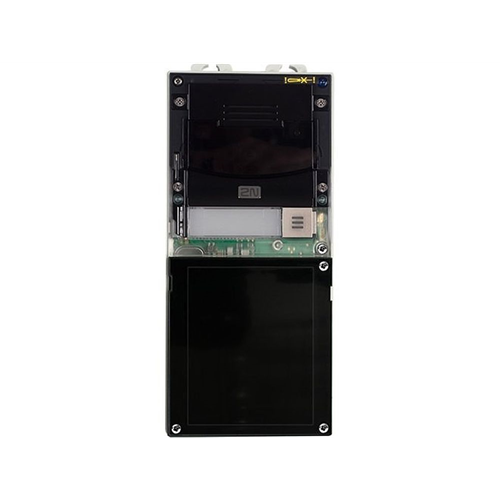

Helios/2N 2N IP Verso main unit met camera (zwart) black - IP54
2N® IP VERSO
The 2N® IP Verso security intercom is configurable to your needs thanks to its modularity. It provides reliable access control and allows you to easily interface with other systems, achieving even higher site security. Available also in black, with a fingerprint reader, Bluetooth module, or touch display.
*Progressive mobile access
*Touchscreen
*Camera with night vision
Helios/2N 2N Bluetooth & RFID lezer (125 kHz, secured 13,56MHz, NFC)
TOUCH KEYPAD & RFID READER 125KHZ, SECURED 13.56MHZ, NFC
Module for 2N® IP Verso and 2N® LTE Verso that combines a capacitive touch keypad with secured RFID reader. Thanks to the multi-frequency RFID reader the module can read a wide range of RFID cards from unsecured 125kHz cards to smart and even secured 13.56MHz cards. Furthermore, the keypad is used for PIN verification and for additional layer of security.
*Multi-frequency RFID card reader
*Reads secured RFID cards
*Keypad used for access control and callings
Helios/2N 2N Opbouw installatie afdekframe voor 1 module for 1 module silver
FRAME FOR INSTALLATION ON THE SURFACE – 1 MODULE
Frame for installation on the surface, 1 module. No other accessories are needed for surface installation of the intercom/access control reader. When installing on a glass or uneven surface, we recommend you use a backplate.
*107 (W) x 130 (H) x 28 (D) mm
Helios/2N 2N IP Verso keypad module
KEYPAD
The numeric keypad module helps you dial users via their phonebook positions or phone numbers, control the lock and use other code-accessible functions. The keypad digits and symbols are backlit. Available also in black (9155031B).
*Suitable for These Products: 2N® IP VERSO, 2N® LTE VERSO, 2N Access Unit 2.0
Helios/2N Helios IP Style surface installation chassis
SURFACE MOUNT BOX
Use the mounting backplate to install the 2N® IP Style intercom on the surface of a wall. The box includes a unique tilt-out mechanism which gives you plenty of room to work with cabling.
*Intercom dimensions with the surface-mounting installation box: 170 (W) x 355 (H) x 40 (D) mm
Helios/2N 2N External IP Relay met 4 outputs (PoE)
EXTERNAL IP RELAY – 4 OUTPUTS, 0 INPUT
Do you need to switch a device that is far away from an intercom or reader? Don’t lay metres and metres of cable, use an IP relay. A 2N IP intercom or access unit will send an HTTP command to the external relay, which will then control the connected device. The command is sent in unsecured form, so we recommend using the external relay to control lights or call a lift.
Helios/2N 2N IP Verso - 13.56MHz secured card RFID reader NFR ready
SECURED RFID CARD READER 13.56 MHZ NFC
Compatible with firmware 2.13 and higher. The card reader module provides you with access control via contactless cards or keyfobs. The module supports the following 13.56 MHz cards or other carriers (optionally card serial number or PAC ID is read).
*ISO/IEC 14443A Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, Ultralight, Ultralight C
*ISO/IEC 14443B CEPAS, HID iCLASS
*JIS X 6319 Felica
*ISO/IEC 18092 SmartPhone with NFC/HCE support, since Android version 6
https://www.2n.com/en_GB/documents/22902/2210357/ip_verso_rfid_reader_13_56mhz_datasheet_a4_en.pdf/38732177-08d2-48ea-8994-e85acea4e0f2
Helios/2N Helios IP Style flush box
FLUSH-MOUNT BOX
Use this mounting box to install the 2N® IP Style into a wall. The flush-mounting box has a special elevating function. It helps you align the intercom with a wall’s surface so that only the correct part of the intercom shows. In other words, a hole in the wall which is too deep won’t ruin the whole installation. The box has a unique tilt-out mechanism which gives you plenty of room to work with cabling.
*Box dimensions: 170 (W) x 355 (H) x 46 (D) mm
*Intercom dimensions above the surface: 170 (W) x 355 (H) x 22 (D) mm
Helios/2N 2N Inbouw installatie frame voor 1 module (9155014 nodig)
FRAME FOR INSTALLATION IN THE WALL – 1 MODULE
The wider frame covers the uneven edges of a drilled hole very well. You’ll also need a flush-mounting box (9155014) to install it in a wall.
*130 (W) x 153 (H) x 5 (D) mm
Helios/2N Helios IP Verso - RFID Card Reader 125kHz
RFID card reader 13,56 MHz 125 kHz
Deze 2N IP Verso uitbreidingsmodule biedt een RFID lezer op 125 kHz. Voor het herkennen van RFID kaarten en tags voor bijvoorbeeld het openen van de deur. Te plaatsen in 9155011© / 9155014 / 9155015 / 9155016 / 9155021 / 9155022 en 9155023.
Helios/2N 2N Opbouw installatie afdekframe voor 3 modules frame for 3 modules - silver
FRAME FOR INSTALLATION ON THE SURFACE – 3 MODULES
Frame for installation on the surface, 3 modules. No other accessories are needed for surface installation of the intercom. When installing on a glass or uneven surface, we recommend you use a backplate.
*Suitable for These Products: 2N® IP VERSO and 2N® LTE VERSO
*107 (W) x 339 (H) x 28 (D) mm
Helios/2N 2N Opbouw installatie afdekframe frame for 3 modules - black
FRAME FOR INSTALLATION ON THE SURFACE – 3 MODULES
Frame for installation on the surface, 3 modules. No other accessories are needed for surface installation of the intercom. When installing on a glass or uneven surface, we recommend you use a backplate.
*Suitable for These Products: 2N® IP VERSO and 2N® LTE VERSO
*107 (W) x 339 (H) x 28 (D) mm
